CSCI 330 — Lab 4

Due: Tuesday April 24, 2018 @ 11:59PM

User-Defined Variant Types in OCaml

Goals

• to continue our journey with OCaml
• to gain hands-on experience with Variants and Recursive Types
• to generate pretty cool images

Overview

You have been tasked with implementing several functions in OCaml. All of the programs require relatively little coding ranging from 2 to 15 lines. If any function requires more than that, you will need to rethink your solution.

1. Download two handout filef from our files directory: [expr.ml] [art.ml]
2. Update each of the functions with your own solutions. As a reminder, you are expected to complete this individually.
3. Test your program using the OCaml environment installed on the Linux Lab machines
4. Submit your updated handout file to the "Lab 4" Autolab assignment.

Start this assignment early I cannot emphasize this enough! ML programming is relatively easy (syntax-wise) but it will seem foreign, especially with recursion and list manipulation.

Note: Solutions using imperative features such as references, arrays, or while loops will receive no credit. Do not use any additional libraries, just use standard OCaml as installed in the Linux environment.

If you wish to work on your own computer for this lab, you will need to install Image Magick

• using the VM: sudo pacman -S imagemagick
• using macOS + brew: brew install imagemagick

You are required to implement each of the following functions:

expr.ml component

Expressions are described with the following grammar:

e ::= x
    | y
    | sin (pi * e)
    | cos (pi * e)
    | (e + e) / 2
    | e * e
    | (e < e ? e : e)

Where pi is defined for you in expr.ml.

NOTE: assuming the range of values for x and y are [-1,1] the guaranteed values for all evaluated functions will also be [-1,1].

We define the custom datatype in OCaml as:

type expr =
    VarX
  | VarY
  | Sine of expr
  | Cosine of expr
  | Average of expr * expr
  | Times of expr * expr
  | Thresh of expr * expr * expr * expr;;

exprToString (20 points)

Enables the "printing" of expressions.

Signature:

expr -> string

Expected Output

exprToString (Thresh(VarX,VarY,VarX,(Times(Sine(VarX),Cosine(Average(VarX,VarY))))));;

(* string = "(x<y?x:sin(pi*x)*cos(pi*((x+y)/2)))" *)

eval (20 points)

Evaluates an expr at a point (x,y)

Signature:

expr * float * float -> float

Expected Output

eval (Sine(Average(VarX,VarY)),0.5,-0.5);;

(* float = 0.0 *)


eval (Sine(Average(VarX,VarY)),0.3,0.3);;

(* float = 0.809016994375 *)

Hints

• You should use OCaml Math library, in particular sin and cos to build your evaluator.
• All expressions are floating-point
• Recall from writing exprToString that Sine(VarX) corresponds to the expression sin(pi*x).

Generating an Image

In your OCaml interpreter, enter the following two commands:

#use "art.ml";;
emitGrayscale (eval_fn sampleExpr, 150, "art_g_sample") ;;

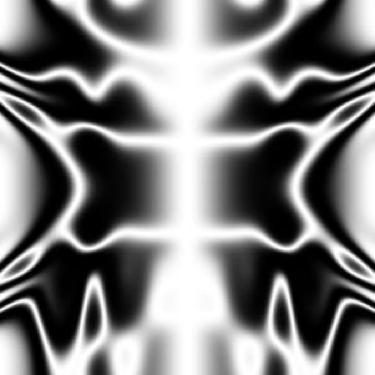

This will generate a grayscale image named art_g_sample.jpg in your working directory. To receive full credit, this image must look like the following grayscale image.

Note that this requires your implementations of eval to work correctly. A message of Uncaught exception ... is an indication that your eval is returning a value outside the range [-1.0, 1.0].

art.ml component

build (25 points)

A random expression generator which requires a tuple of (rand, depth)

Signature:

(int * int -> int) * int -> expr

The first element, rand, is a random number generator of type int * int -> int

• Each call to rand (i,j) returns a random integer between i inclusive and j exclusive.
• Use this function to randomly select operators when composing subexpressions to build up larger expressions.
• An appropriate rand function for testing purposes can be generated by calling makeRand (see comments in art.ml).

The second element, depth, is a maximum nesting depth.

• A random expression of depth d should be built by randomly composing sub-expressions of depth d - 1.
• IMPORTANT The only expressions of depth 0 are VarX or VarY.

With this in place you can generate random art using the functions:

doRandomGray : int * int * int -> unit
doRandomColor : int * int * int -> unit

Each function takes as a parameter a triple (depth, seed1, seed2) where:

• depth is the depth of the expression to be generated
• seed1 and seed2 are two seeds for the random number generator.
• The functions generate JPEG files in your working directory
  • art_g_1_<depth>_<seed1>_<seed2>.jpg
  • art_c_1_<depth>_<seed1>_<seed2>.jpg

Hints and Notes

The gray scale image is built by mapping out a single randomly generated expression over the plane, and the color image is built using three functions for the intensities of red, green and blue.

Play around with how you generate the expressions, using the tips below. Name your best color file color1.jpg and your best gray file gray1.jpg. Save the parameters, i.e. the depth, the seeds, and whether you used build or build2 to generate them in the bodies of c1 and g1 (these are included in art.ml for you to fill in). These images will be used in the extra credit portion of the assignment (voting for the coolest images).

• Don't build the datatypes directly -- use the build functions provided in expr.ml. The purpose is to hide the actual implementation, i.e. the datatype, for the expressions from the random art code, thus enabling modular code.
• Depths of 8-12 produce interesting pictures, but play around
• Make sure your expressions don't get "cut-off" early with VarX and VarY, as small expressions give simple pictures. In general, write your build function to bias the generation towards more interesting operators.

build2 (25 points)

• Add two new operators to the grammar, i.e. to the datatype, by:
  1. introducing two new datatype constructors, one of which must accept three arguments e.g. C of expr * expr * expr
  2. adding the corresponding cases to exprToString. Give some meaningful name/representation.
  3. adding the corresponding cases to eval. Ensure it mathematically evaluates to a range of [-1, 1]
• Write a new function build2, which behaves exactly like your function build, except which generates expressions including your two new operators. Test these functions.
• When testing these functions, use doRandomGray2 and doRandomColor2 to generate the images.

Submission

Submit expr.ml, art.ml, gray1.jpg, and color1.jpg as a ZIP FILE to the Lab 4 assignment through Autolab

Grading

100 points total

• 65 points on passing the autolab tests
• 25 points on manual inspection for build2 and required modifications
• 10 points on documentation, formatting, describing what your code does, style, and adhering to the specifications and instructions listed

Attribution

This assignment was adapted from Sorin Lerner's CSE 130 course at UCSD and slightly modified by Dr. Schwartz and Prof. Killian
